Mordheim Terrain Tutorial – Part Deux!

OK folks, I am back with my Mordheim Terrain Tutorial – Part Deux! If anyone missed Part 1, you can read it here. Since I am laid up in bed with massive neck pain, I figured I would use the time to write another installment in this tutorial… that and watch Big Bang Theory on blu-ray. 🙂

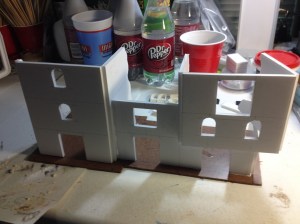

So, we ended Part 1 with gluing our wall sections together. Here is a shot for a reminder:

IMG_1661b

The  second and thrid floor of the section on the right overhangs the first floor, but since the wall piece on the left, which forms the right wall of the center piece, stretches to the ground, it can support the weight of the upper floors without first adding a floor under the overhang. If your piece overhangs all the way around, you will need to support the upper floors first. Also, we will not worry about any small gaps in the seems of our walls at this point. We will address those later with detailing pieces and texture before painting.

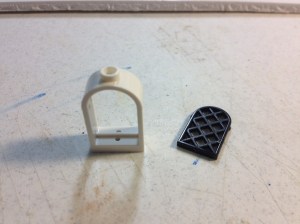

Now, at this point, lets go ahead and prepare to insert our Lego windows. When we first get our Lego pieces, they will look like this:

IMG_1648b

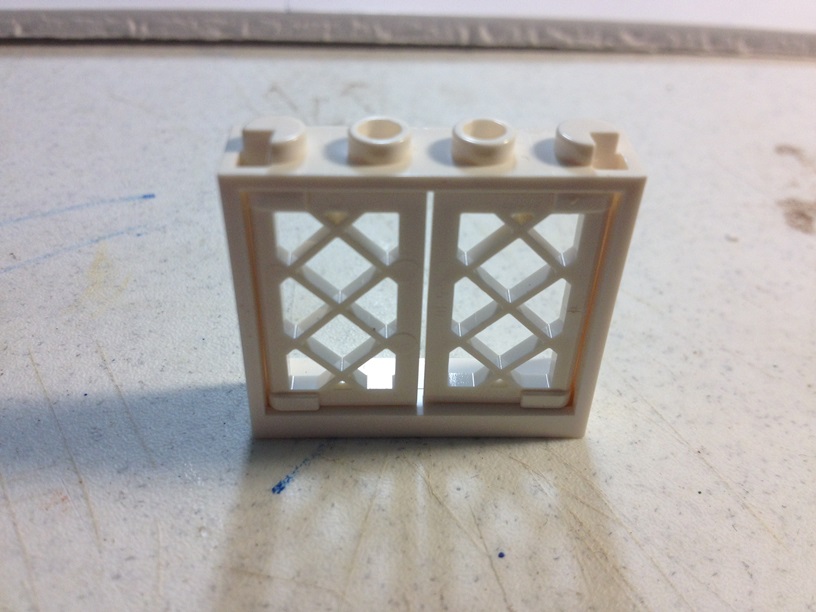

And this:

IMG_1649b

What we need to do in order to get the windows ready to add to our terrain, is remove the pieces on top that allow Legos to connect to each other. We can cut them off with a hobby knife, file them off, or do use my favorite method, fire up the dremel! A dremel, or any other rotary tool, with a sanding drum attached will make very short work of the connector pieces, but be careful not to remove too much. Unless we want to reate a really damaged look to our windows, we want to be sure not to change the shape of the window itself. When done, our windows should look like this:

IMG_1650b

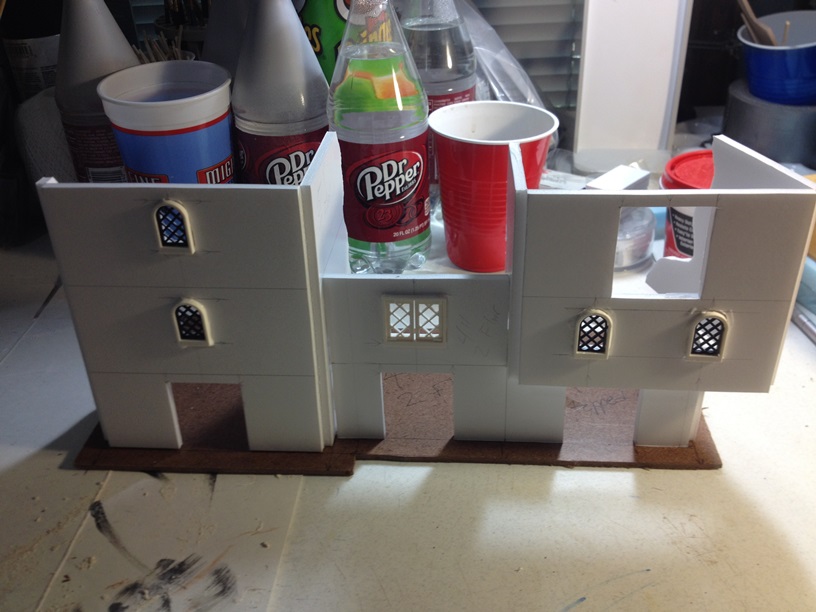

Now our windows should just slide straight into the openings we already cut:

IMG_1662b

Add a little white glue and our windows are in for good.

Now we can start adding floor sections to the buildings. Over the years, I have trried numerous methods of making wooden flooring for my buildings. I think the absolute BEST looking method I have found is using individually cut, shaped, and glued craft popsicle sticks about 1/4 inch wide. Unfortunately, that method takes for freaking EVER, so I gave it up a fw months ago.The method we are going to use for these buildings is MUCH faster, and while the results are not QUITE as nice, they still look good. We are going to use 1/8 inch thick sheet balsa wood. You can get it from most craft stores for a few dollars. We will start with the bttom floors as they will be full squares.

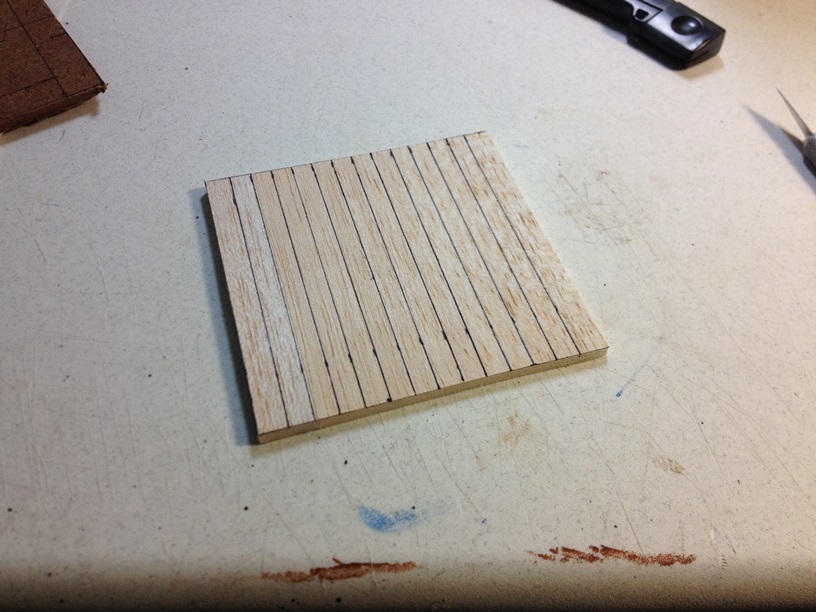

First, we have to measure our INSIDE dimensions for our floor sections. If we use the outside dimensions, our floors will be 3/8 inch to long and too wide. Once we have our measurements, we can cut out the sheet balsa with a hobby knife. Then we measure out 1/4 strips to serve as our “individual” boards, and draw them with a fine point marker:

IMG_1667b

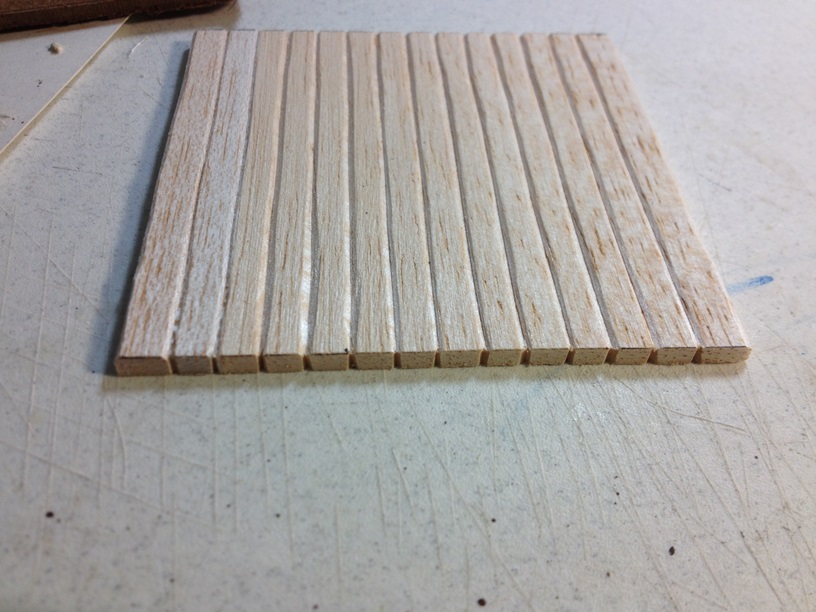

Once our lines are drawn, we can do two things. We can simply go over the lines with a ball point pen, pressing harder each time to create indentions into the balsa, but I find that once you start to add paint, the balsa soaks it up and swells just slightly making the lines a little less defined. What I prefer to do, is take a hobby knife and make angled cuts from two directions to remove a “V” shaped section where my line was. This way, there is no wood left to swell back out, leaving our “individual” boards more defined.

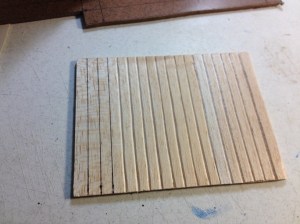

In progress shots:

IMG_1663b

IMG_1668b

As can be seen in the above photo, any edge that is not concealed by a wall section, I also like to notch the piece on the end. This continues the illusion that each floor board is seperate. As the saying goes, the devil is in the details.

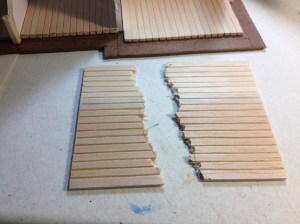

We can also go ahead and make the floor for the stepped sectioned of our right side building. This piece will keep our upper floors squared and support the weight of the rest of the building. We basically start the same way. measure out a nice square piece and cut our “individual” boards. Then, since the building is partially destroyed, we will go ahead and decide how much of our floor to break off to simulate building damage. I use the length of the wall sections to gauge the floor dimensions, and since we went ahead and measured a full square, we have some extra left over for any other section that have the same dimensions:

IMG_1671b

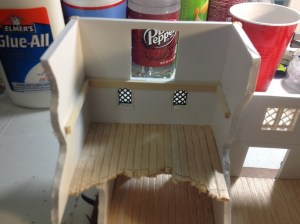

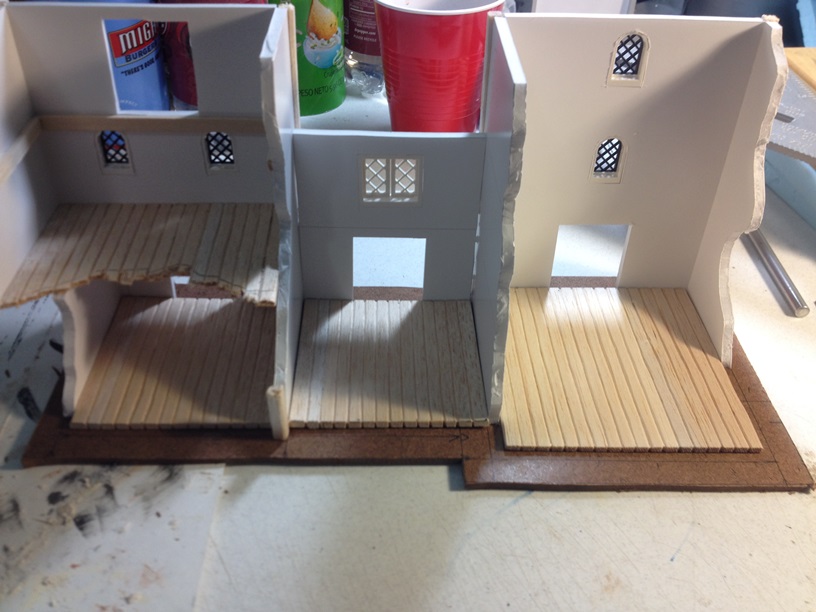

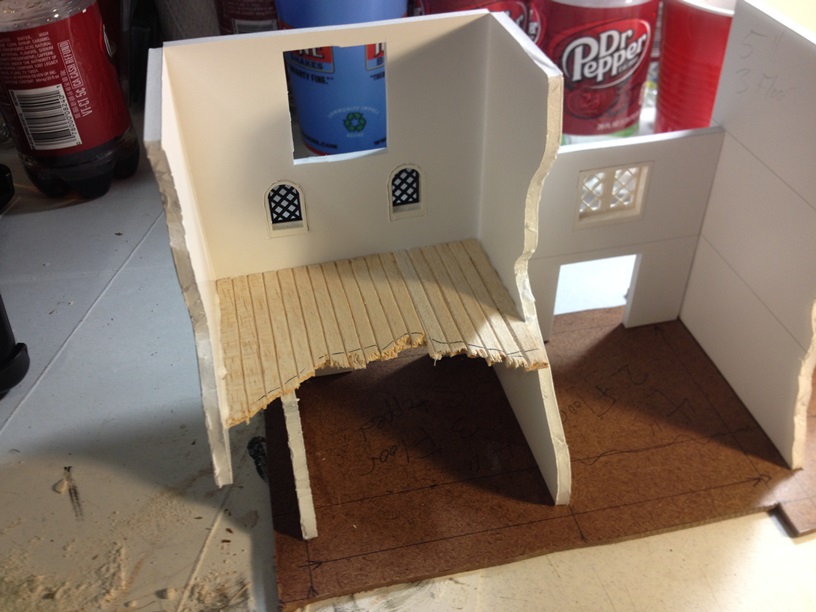

To add the floors to the terrain, we start by simply gluing down the bottom floor squares. Then we move on to the lower floor of the stepped section. All we need to do, is glue the edge of the floor piece where it is flush with the bottom of the wall, and everthing should line up perfect. With other upper floors, we will just use some balsa strips glued to the walls to support the floors themselves. Nice and easy peasy:

IMG_1664b

IMG_1669b

IMG_1670b

IMG_1672b

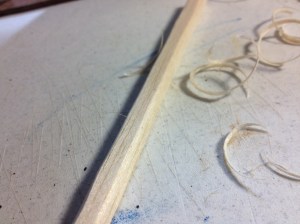

Now it is time to add our corner beams. Because we only partially cut through our foamcore walls, and folded them around, we obviously have a gap where our corners folded away from each other. 1/4 inch square balsa strips fit PERFECTLY into those gaps. First we cut them to length with a hobby knife. At this point, our balsa strips are the right length, but they are a little too perfectly square for the period we are trying to capture. We really want a more “rough hewn” look here, so what we are going to do, is we are going to take our hobby knife and slightly shave off three side. The fourth side will be left sqaure because it will be hidden within the wall gap. Leaving the third side square also increases surface area for gluing. Once shaped, our corner pieces should look something like this:

IMG_1665b

This paints up REALLY well.

When our corner braces are cut and shaped, we simply need to glue them into place. That leaves us with this:

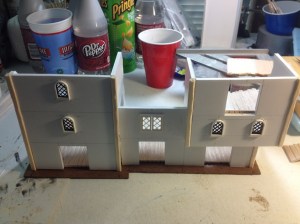

IMG_1673b

On to the next piece!

Since our roof will not be flat, we need to make some angled wall sections to hold the roof up. Now, you CAN do this when originally drawing out the wall sections, but I seem to ALWAYS forget to do that, so we are adding them now. Do not judge me… 🙂

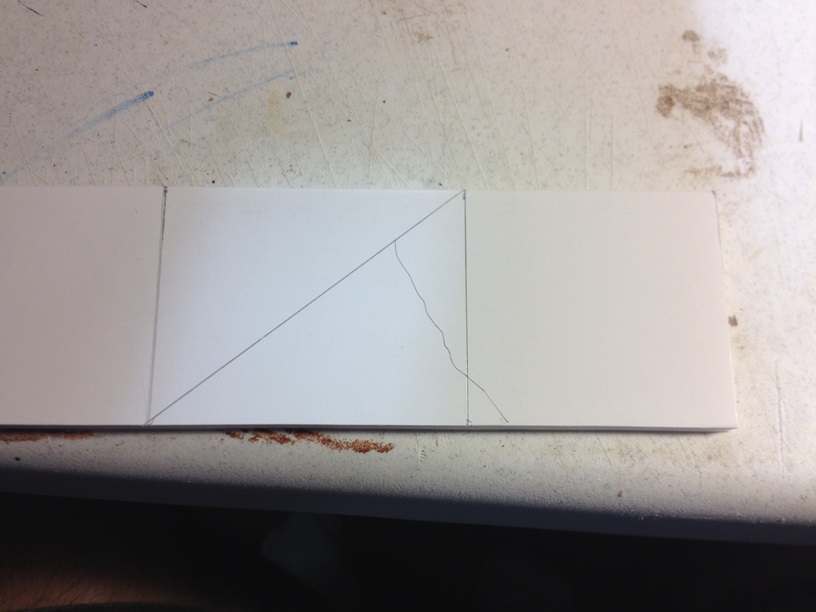

This is pretty easy, we can just use a piece of cutoff laying around to lay the angled pieces out. We can just use the normal floor height of two inches, measure out half of length of the wall section, and draw a diagonal line across to establish our roof angle. Like this:

IMG_1675b

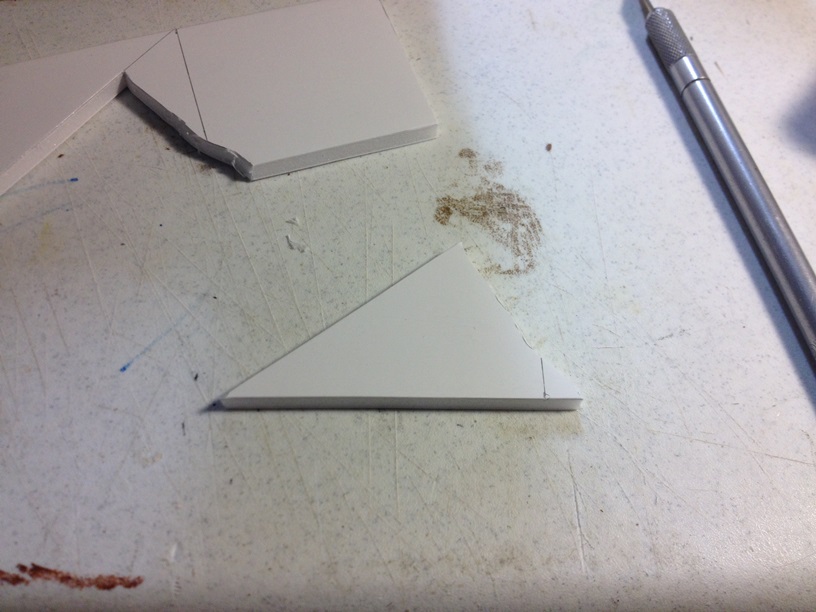

We just draw a jgged line, as shown to simulate our building damage, and cut the piece out with a hobby knife:

IMG_1676b

Rinse and repeat for the two end building wall sections that will support roof pieces. For the building in the center, we will just use balsa strips to support the roof sections. Glue them in place, and BING!

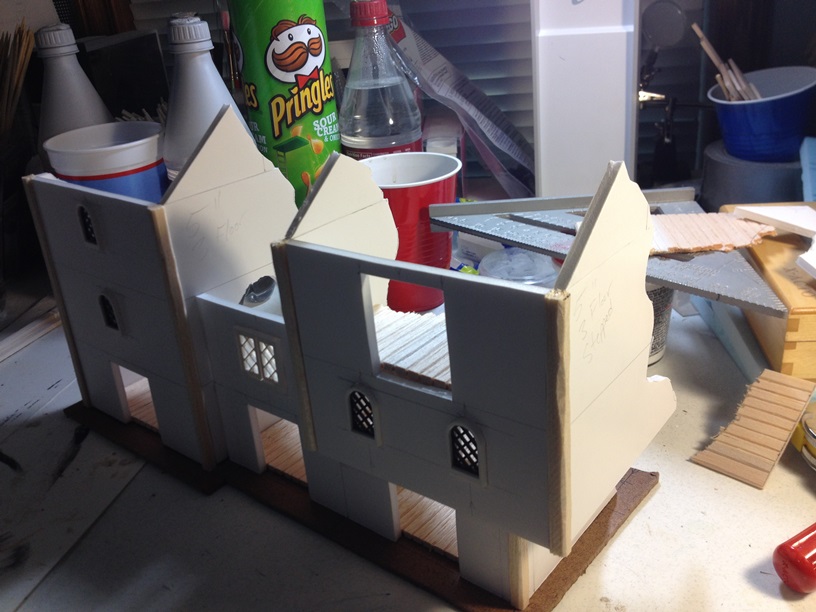

IMG_1677b

Do not worry about the slight seems created by gluing on the top pieces. We will cover those with detailing and texturing later.

Now come the funnest, and most time cunsuming part of the project. DETAILING! For me, there is one simple rule to detailing. There really is no such thing as too much. Seriously.

We will start with craft popsicle sticks:

IMG_1678b

We use these to give the buildings a real “Tudor” style look. We can add them all over the place. The more the better. Again, we want a real rough hewn look, so we will shave down the edges of the sticks with a hobby knife after we have measured, and cut them to length. Then it is just a matter of gluing them everywhere:

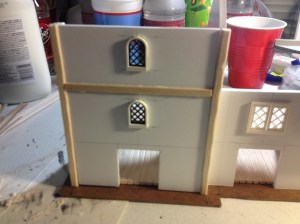

IMG_1679b

Since I have a LOT more detailing to do still, we will end this part of the tutorial here. I hope to have detailing and texturing done by the weekend. If so, then I will also post the next part of the tutorial.

Again, feel free to let me know what you think of my tutorial in the comments.

Thanks

Mordheim Terrain Tutorial – Part 1

So, a while back, someone asked me to do a terrain tutorial. I have never done a tutorial of any kind before, so this will be a little bit of an experiment for me. I will try to explain each piece as best I can, but if I manage to skip anything, or if there is anything anyone does not understand, just post a comment, and I will explain further. One of the things that I love about wargaming terrain, is that there is really no one right way to do anything. There are almost as many ways of making terrain, and styles as there are people who make terrain. What I am about to show you is not the only way to make terrain, by any stretch. It is just how I do it. I also learn something new with almost every terrain piece, so the way I show you to make terrain in this tutorial may not be the way I make terrain a year from now. Whow knows… Well,on that note, on with the tutorial.

The first thing you need to build terrain is tools and materials. This is, by now means, an exhaustive list, it is just what I use most often.

Tools:

Hobby Knife

Various Pliers

Razor Saw

Rulers/Straight Edge (multiple recommended)

Rotary Tool (recommended)

Pin Vice (recommended)

Jigsaw (recommended for basing)

Supplies:

Foamcore

Balsa Strips (Various Sizes)

1/8 Inch Sheet Balsa

Craft Matchsticks

Craft Popsicle Sticks

White Glue

Lego Windows (recommended)

Stucco Patch

Cheap Acrylic Paints

Cereal Box Cardboard

1/8 Inch Hardboard/Fiberboard (for basing)

Imagination

Building a piece of terrain always starts with an idea. My ideas come from various places, movies, pictures, other pieces of terrain… lots of different sources. In the case of this particular piece, I was watching the movie, A Knight’s Tale, and I liked some of the buildings I saw in the set pieces. They inspired me to get up and make a new piece, and here we are. The idea for this piece is for three seperate “buildings” all attached together as a single piece. I did not want each section to be identical with the others, because that is just boring. As I thought about it, I decided that two of the three buildings would be three floors, and the third would be two floors. It made sense to put the two taller pieces on the outside, and place the shorter piece in the center. I also wanted to play with widths a little, so the left outer pieces would be five inches wide all the way up, the center piece would be four inches wide, and the right piece would start at four inches, and step outward to five inches on the second floor.

I start with a sheet of foamcore. I have a two inch wide, yard long straight edge that is perfect for measuring out floors. I use the Games Workshop standard of two inches per floor. So, I lay the straight edge down and draw a bunch of two inch wide lines across the foamcore sheet. With that, all my floors are already measured out. Easy peasy.

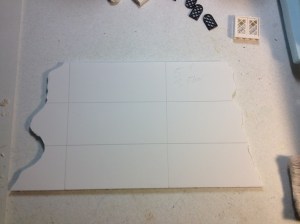

Next, I measure out the length that I want each wall to be. We want good, full access to as much of the building as possible for playing purposes, so we are only going to make three of the four walls. We will draw all three walls as one piece. When we measure the walls out, we will make each wall seection 3/8 of an inch shorter than however long we want our outside measurements to be. I will explain why shortly. Once measured and drawn out, we cut them out with a hobby knife, like this:

IMG_1647b

Sorry, but I never got a picture before cutting the whole piece out.

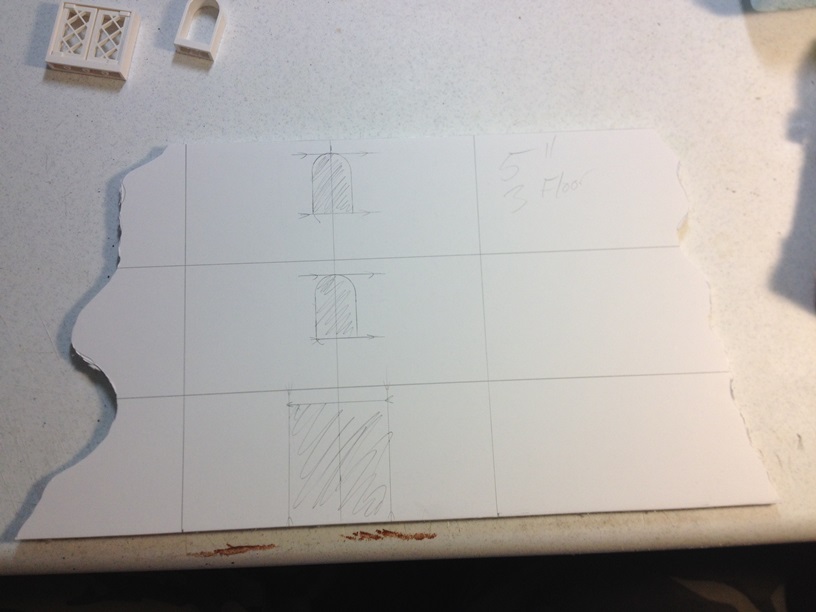

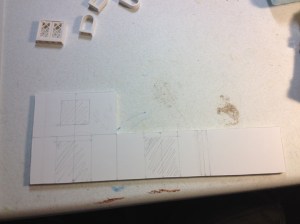

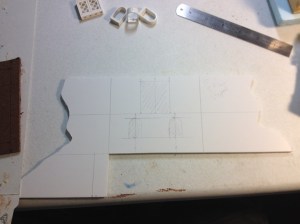

Before I do any further cutting, I like to decide on, and draw out my windows and doors. For ease of building, I like to use Lego windows. They look good, are the right size, can be ordered directly from the Lego website, and are super cheap. Decide on where you want to place them, and you can then just trace out the windows onto the foamcore:

IMG_1651b

IMG_1652b

IMG_1653b

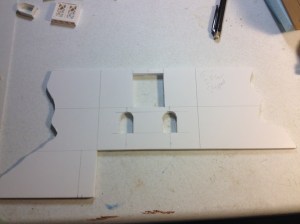

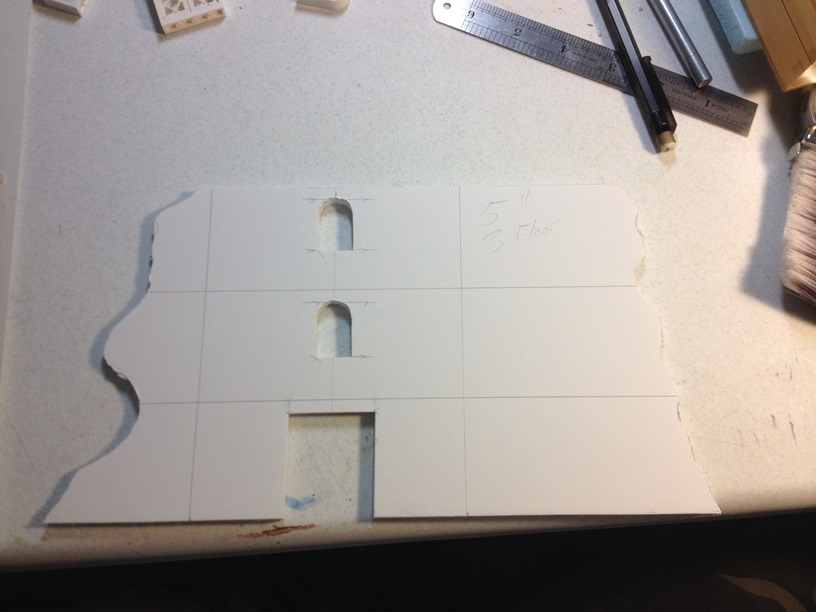

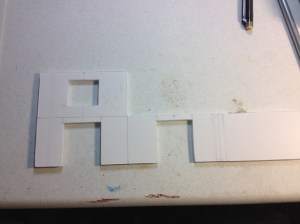

Once we have all of the window and door placement figured out, and drawn on, go ahead and cut them out.

IMG_1654b

IMG_1655b

IMG_1656b

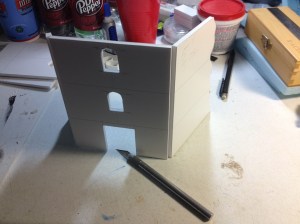

Now, we are ready to cut the individual walls. What we are going to do here, is cut through the first layer of paper along our wall lines, and about halfway through the foam, leaving the second paper layer completely intact. By doing this, we can just fold the walls around, while keeping them attached to each other. This makes assembling the buildings much easier than if the walls were completely seperated. This is also why we made each wall section 3/8 inch shorter than our desired outer wall dimensions. We have to account for the width the foamcore itself adds to the wall dimensions once folded outward. Foamcore is about 3/16 of an inch wide, so if you count one folded section on each side, that adds 3/8 inch to the overall wall length.

IMG_1658b

Basing. Now, there are two schools of thought on terrain basing. Some like no bases at all so that all of their terrain sits directly on any table style with no aesthetic irregularities. Others, like me, prefer to make bases for their terrain for various reasons, including increased stability. If we want to make a base, now is the time. We draw the dimensions of the building floor out, and add 1/2 inch all the way around our outer dimensions.

IMG_1645b

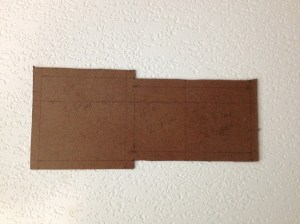

Once everything is drawn out, cut the base out with a jigsaw. We do not have to worry about our cuts being perfect, as we are going to rough up the edges later anyway, to simulate a more natural look.

IMG_1646b

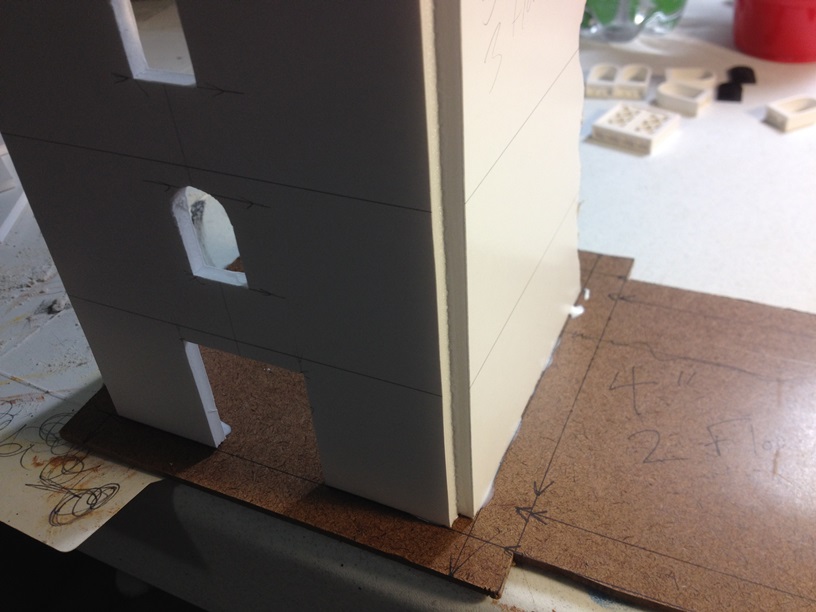

Once the base is cut out, we can glue our wall pieces down. We can use superglue for immediate adhesion, or we can use white glue if there is no superglue. Foamcore actually adheres using white glue VERY quickly, so it is almost as good as superglue. If our measurements are good on our base, we should be able to line our walls up almost perfectly using our measurement lines for gluing.

IMG_1659b

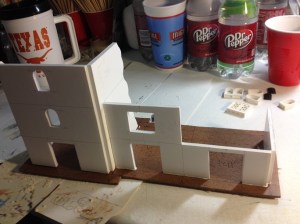

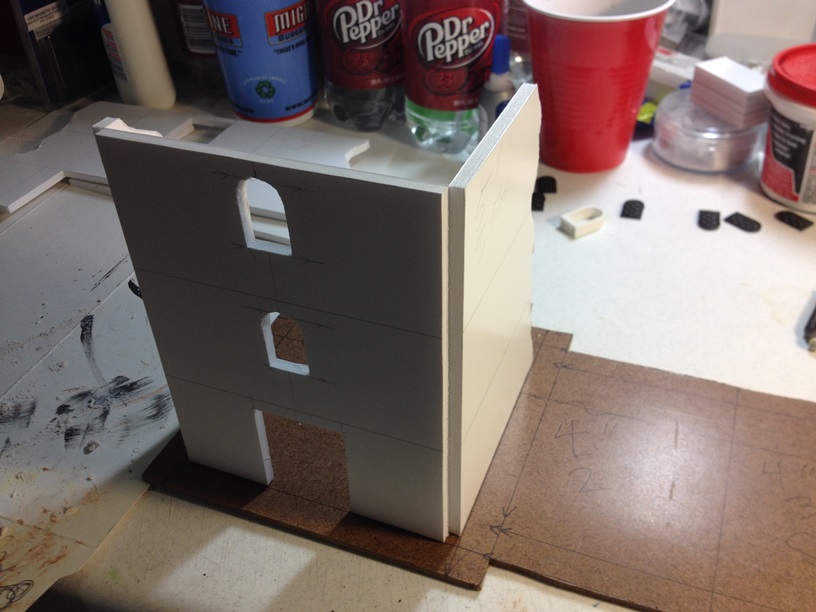

Since this particular piece has mulitple wall sections, we will go ahead and place the rest as well.

IMG_1657b

IMG_1660b

IMG_1661b

This is probably a good stopping point for the tutorial. I will post part two in the next day or so. If you like the tutorial so far, great! If you would like more, or less, of anything in particular, please let me know in the comments.
